Webhook Auto Deploy

Overview

A standard deploy configuration can expose a webhook so that pushing code or a tag automatically creates and runs a deploy request. Gitee, GitHub, GitLab, Gogs, Coding and Codeup (Alibaba Cloud) are supported.

Setup

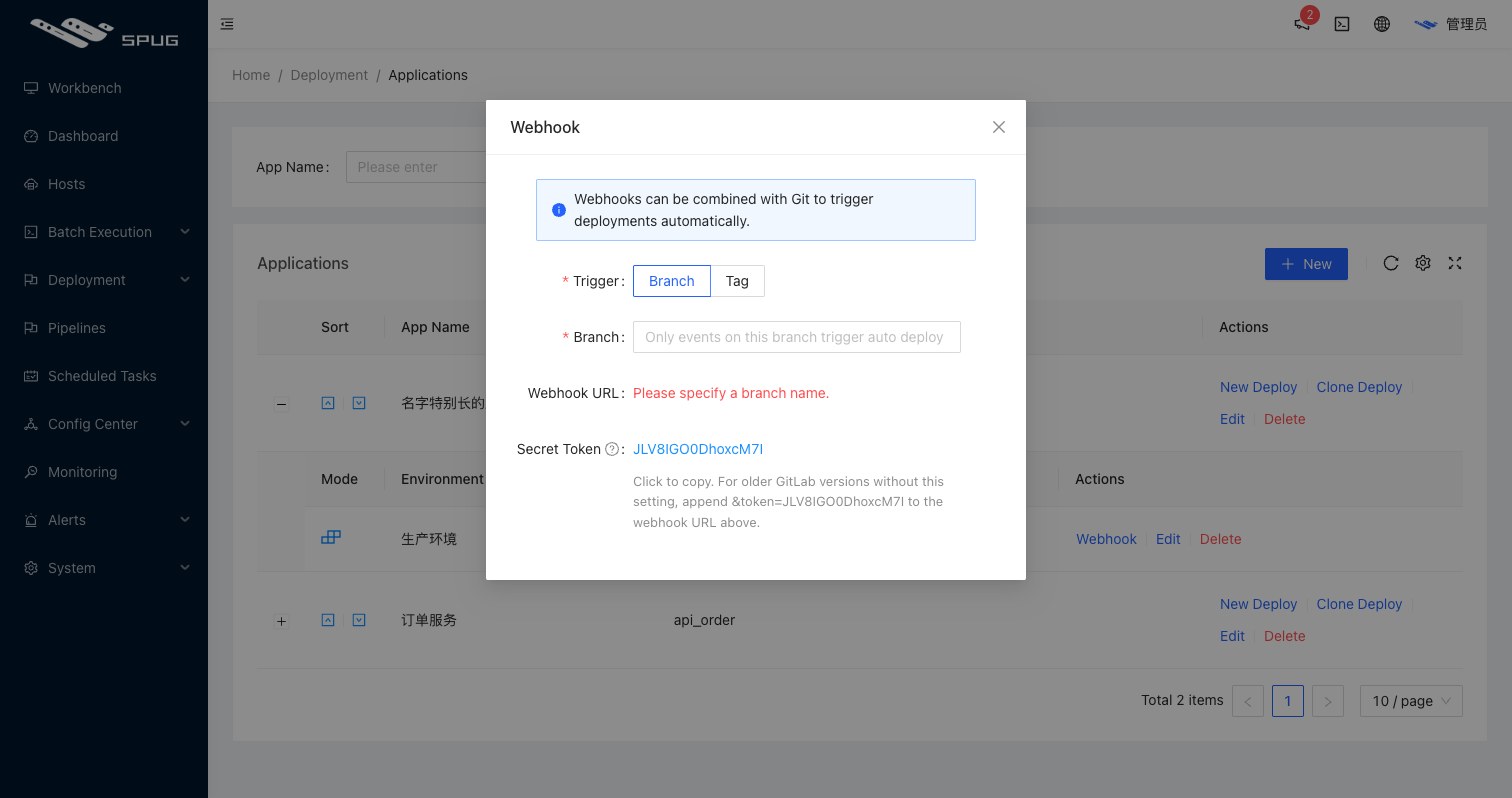

1. On the Deployment / Deploy Configs page expand the application and click Webhook on the deploy configuration.



2. Choose the trigger:

   • Branch: pick a branch; every push to it triggers a deploy of the latest commit;
   • Tag: every new tag triggers a deploy of that tag.

3. Copy the generated Webhook URL and Secret Token.

4. Add a webhook in the repository settings of your Git hosting platform:

   • URL: the copied Webhook URL;
   • secret: the Secret Token (called WebHook password on Gitee, secret text on Gogs, Secret on GitHub, Secret Token on GitLab);
   • events: Push (or Tag Push for the tag trigger).

5. Push a commit to test. A request of type Webhook appears under Deploy requests with the commit message as its title.

Tip

• Platforms without a secret setting, such as old GitLab versions, can append &token=<Secret Token> to the Webhook URL instead.
• When the deploy configuration has review enabled, the webhook only builds; the release still needs approval and a manual deploy.
• The Git hosting platform must be able to reach Spug; for internal deployments expose the /api/apis/deploy/ path through a public proxy.

Request verification

Spug identifies the platform by request header and verifies the Secret Token:

Platform	Header	Verification
GitLab	X-Gitlab-Token	plain comparison with the Secret Token
Gitee	X-Gitee-Token	plain comparison with the Secret Token
Codeup	X-Codeup-Token	plain comparison with the Secret Token
Gogs	X-Gogs-Signature	HMAC-SHA256 signature
GitHub	X-Hub-Signature-256	HMAC-SHA256 signature
Coding	X-Coding-Signature	HMAC-SHA1 signature

Your own CI system can call the webhook directly (POST /api/apis/deploy/<deploy config ID>/<branch|tag>/?token=<Secret Token>) with a body that follows any of the formats above and carries ref and the commit information.

See the blog post Webhook auto deploy for a walkthrough.
